Description:

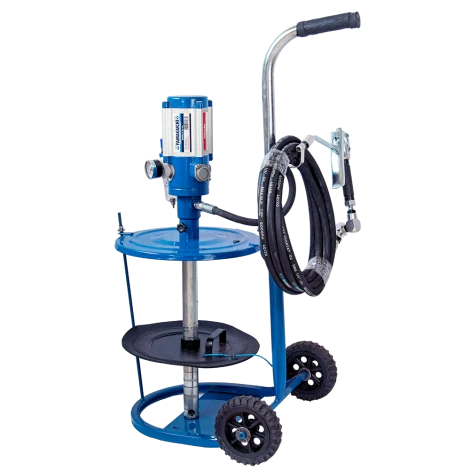

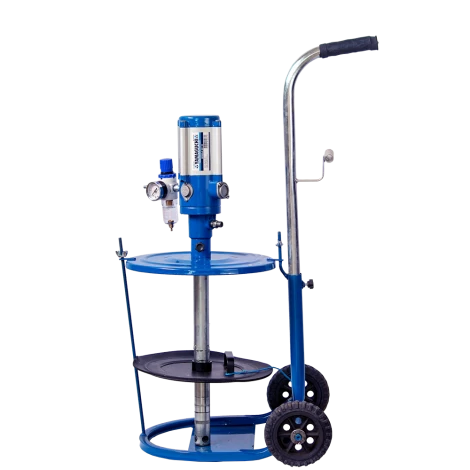

- Pneumatic grease pump adaptable for 5 gallon (20 Kg) grease pail with follower plate.

Technical information:

- Flow rate: 17.63 oz/min at 87psi (500g/min at 6 bar)

- Ratio: 50:1

- Recommended working air pressure: 72.5 psi (5 bar)

- Air Operation Range: 43.5-116 psi (3-8 bar)

- Maximum grease pressure: 6000 psi (413.6 bar)

- Air consumption: 400 L/min at 8bar

- Air inlet size: 1/4” NPT

- Grease outlet size: 1/2”- 27

- Recommended air inlet hose: 1/4" NTP PT500

- Recommended grease outlet hose: 1/4" SAE 100R2AT 19.68 ft (6 m)

- Weight: 26.83 lbs (12.17Kg)

- Product dimensions: 16.93” (L) x 16.54” (W) x 34.45” (H)

- (430mm (L) x 420mm (W) x 875mm (H))
